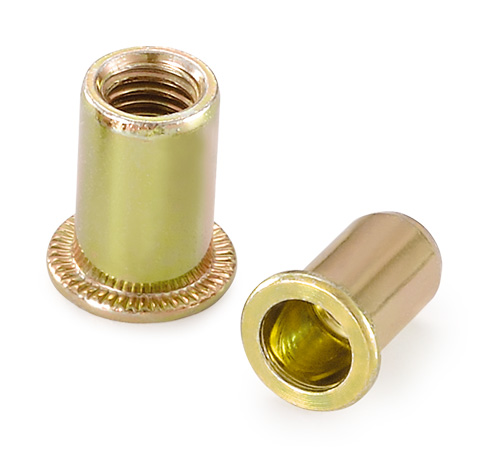

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B |
S |
| M3 |
1.0-2.5 |
9.5 | 4.9 | 5.0 | 8.0 | 0.8 |
| M4 |
1.0-2.5 |
11.0 | 6.0 | 6.1 | 9.0 | 0.8 |
| M5 |
0.5-3.0 |
13.5 | 6.9 | 7.0 | 10.0 | 1.2 |
|
M6 |
1.0-2.5 2.5-4.0 |
14.5 16.5 |
8.9 | 9.0 | 12.0 | 1.5 |
|
M8 |
0.8-3.5 |
18.0 |
11.0 | 11.1 | 15.0 | 1.5 |
|
M10 |
1.0-3.5 3.5-6.0 |
19.5 22.0 |
11.9 | 12.0 | 16.0 | 1.7 |
