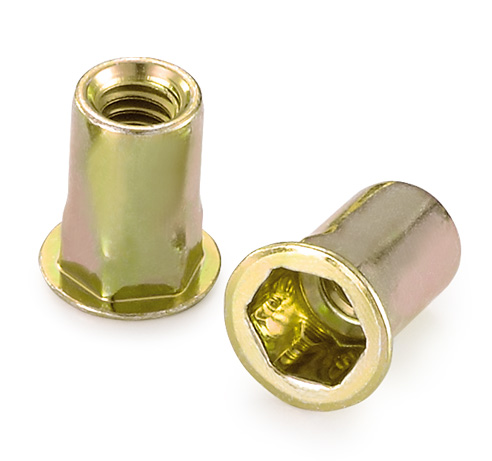

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | M |
孔径 Hole Size |
B | S |
| M4 | 0.5-2.0 2.0-3.3 |
9.78 11.05 |
6.35 | 6.35 | 9.53 | 0.68 |
| M5 | 0.5-3.3 3.3-5.7 |
11.05 13.59 |
7.10 | 7.14 | 9.91 | 0.68 |
| M6 | 0.7-4.2 4.2-6.6 |
14.86 17.40 |
9.50 | 9.53 | 12.96 | 0.76 |
| M8 | 0.7-3.8 3.8-7.9 |
17.40 21.46 |
12.70 | 12.70 | 16.64 | 0.89 |
| M10 | 0.7-3.8 3.8-7.9 |
17.40 21.46 |
12.70 | 12.70 | 16.64 | 0.89 |
