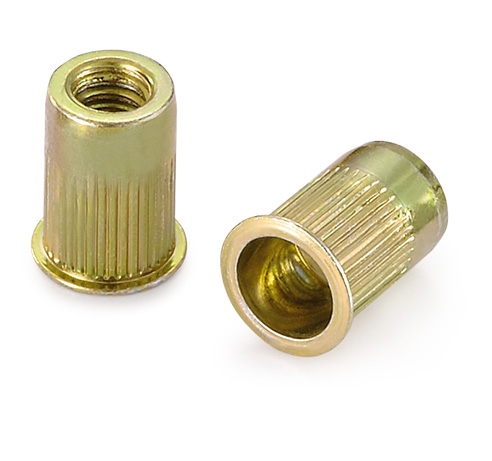

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
| M4 | 0.5-2.0 2.0-3.3 |
10.67 11.94 |
6.73 | 6.75 | 7.87 | 0.48 |
| M5 | 0.5-3.3 3.3-5.7 |
12.07 14.86 |
7.52 | 7.60 | 8.64 | 0.48 |
| M6 | 0.7-4.2 4.2-6.6 |
14.73 17.27 |
9.91 | 10.00 | 11.56 | 0.55 |
| M8 | 0.7-3.8 3.8-7.9 |
17.53 20.45 |
13.46 | 13.50 | 15.11 | 0.55 |
| M10 | 0.7-3.8 3.8-7.9 |
17.53 20.45 |
13.46 | 13.50 | 15.11 | 0.55 |
