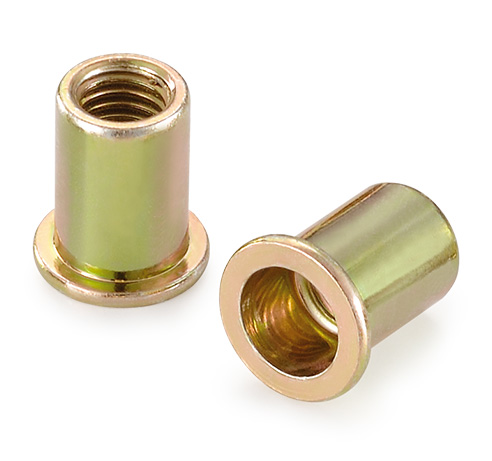

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
| M3 | 0.5-1.5 1.5-2.5 |
9.5 10.5 |
5.0 | 5.1 | 8.3 | 0.8 |
| M4 | 0.5-1.5 1.5-2.5 2.5-3.5 |
11.0 12.0 13.0 |
6.0 | 6.1 | 9.3 | 0.8 |
| M5 | 0.5-1.5 1.5-2.5 2.5-3.5 |
12.0 13.0 14.0 |
7.0 | 7.1 | 10.3 | 1.0 |
| M6 | 1.0-2.5 2.5-4.0 |
15.5 17.0 |
9.0 | 9.1 | 12.3 | 1.5 |
| M8 | 1.0-2.5 2.5-4.0 |
17.0 18.5 |
11.0 | 11.1 | 14.3 | 1.5 |
| M10 | 1.0-2.5 2.5-4.0 |
17.5 19.0 |
13.0 | 13.1 | 16.3 | 1.5 |
