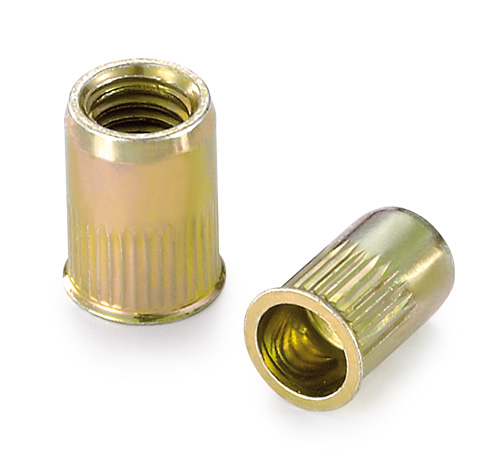

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
|
M3 |
0.5-2.0 | 9.0 | 5.0 | 5.1 | 5.7 | 0.45 |
|
M4 |
0.5-2.5 2.5-4.0 |
10.0 12.0 |
6.0 | 6.1 | 7.0 | 0.45 |
|
M5 |
0.5-2.5 2.5-4.0 |
12.0 14.0 |
7.0 | 7.1 | 8.0 | 0.5 |
|
M6 |
0.7-3.0 | 15.0 | 9.0 | 9.1 | 10.0 | 0.5 |
|
M8 |
1.0-3.0 | 16.0 | 11.0 | 11.1 | 12.0 | 0.5 |
|
M10 |
1.0-4.0 | 20.5 | 13.0 | 13.1 | 14.1 | 0.5 |
|
M12 |
1.0-4.0 | 24.0 | 16.0 | 16.1 | 17.1 | 0.6 |
