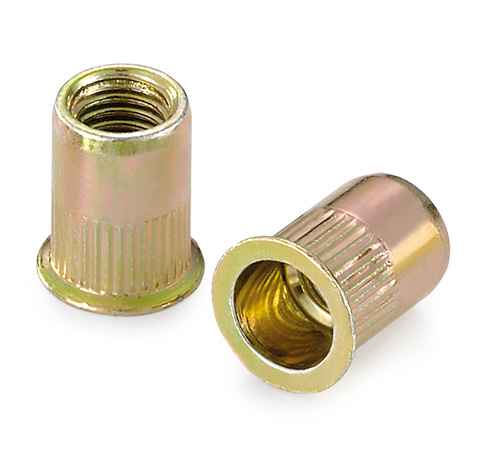

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
|
M3 |
1.0-2.5 | 9.5 | 5.0 | 5.1 | 6.6 | 1.0 |
|
M4 |
1.5-3.5 | 11.5 | 6.0 | 6.1 | 9.0 | 1.5 |
|
M5 |
1.5-4.0 | 13.0 | 7.0 | 7.1 | 9.5 | 1.5 |
|
M6 |
1.5-4.5 | 16.0 | 9.0 | 9.1 | 12.0 | 1.5 |
|
M8 |
1.5-4.5 | 18.5 | 11.0 | 11.1 | 13.5 | 1.5 |
|
M10 |
1.5-4.5 | 22.0 | 13.0 | 13.1 | 15.2 | 1.5 |
|
M12 |
1.8-4.5 | 26.0 | 16.0 | 16.1 | 18.6 | 1.8 |
