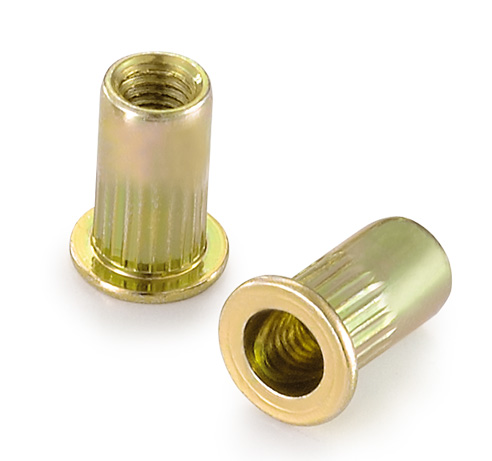

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
|
M3 |
0.5-2.0 | 10.5 | 5.0 | 5.1 | 8.0 | 0.7 |
|
M4 |
0.5-2.5 | 11.0 | 6.0 | 6.1 | 9.0 | 0.8 |
|
M5 |
0.7-3.0 | 13.0 | 7.0 | 7.1 | 10.0 | 1.0 |
|
M6 |
0.8-3.0 | 16.5 | 9.0 | 9.1 | 13.0 | 1.5 |
|
M8 |
1.0-3.0 | 17.5 | 11.0 | 11.1 | 16.0 | 1.5 |
|
M10 |
1.0-4.0 | 24.0 | 13.0 | 13.1 | 19.1 | 2.0 |
|
M12 |
1.0-4.0 | 25.2 | 15.9 | 16.0 | 21.7 | 2.0 |
