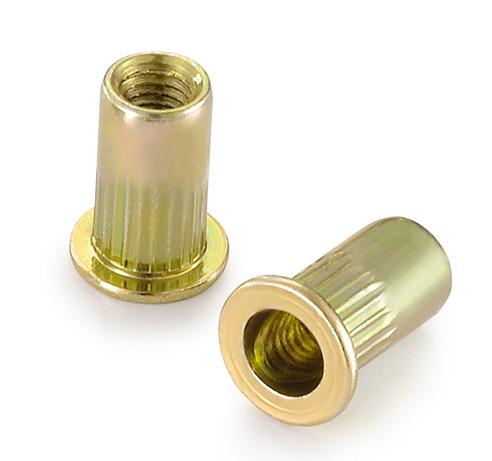

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
|
M3 |
0.5-3.0 | 10.5 | 4.9 | 5.0 | 7.0 | 0.8 |
| M4 | 0.5-2.5 3.1-4.0 |
11.0 13.0 |
5.9 | 6.0 | 9.0 | 1.0 |
| M5 | 0.5-3.0 3.1-4.0 |
13.0 16.0 |
6.9 | 7.0 | 10.0 | 1.0 |
| M6 | 0.5-3.0 3.1-4.5 |
16.0 17.5 |
8.9 | 9.0 | 12.0 | 1.5 |
| M8 | 0.5-3.0 3.1-5.5 |
17.5 20.0 |
10.9 | 11.0 | 15.0 | 1.5 |
| M10 | 0.5-3.0 3.0-6.0 |
19.0 24.0 |
11.9 | 12.0 | 16.0 | 2.0 |
|
M12 |
1.0-4.0 | 25.0 | 15.9 | 16.0 | 22.0 | 2.0 |
