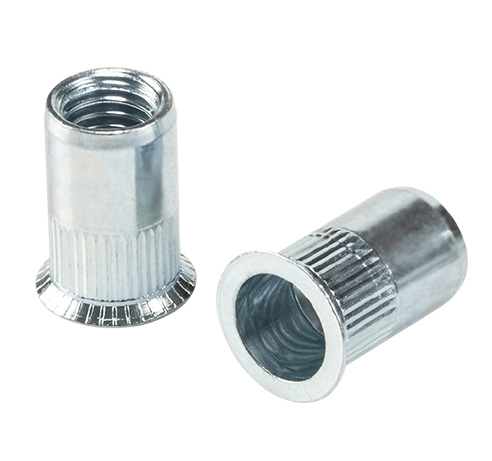

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
|
M4 |
1.5-3.5 | 11.5 | 5.97 | 6.1 | 8.75 | 1.65 |
|
M5 |
1.5-4.0 | 13.5 | 6.97 | 7.1 | 9.75 | 1.65 |
|
M6 |
1.5-4.5 | 16.0 | 8.97 | 9.1 | 11.75 | 1.65 |
|
M8 |
1.5-4.5 | 19.0 | 10.97 | 11.1 | 13.75 | 1.65 |
|
M10 |
1.5-4.5 | 21.0 | 12.97 | 13.1 | 15.75 | 1.65 |
