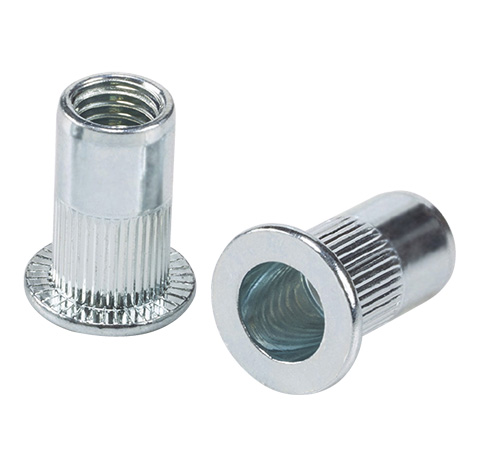

产品与方案- 拉帽
|
螺纹 Thread |
板厚 Grip Range |
L | D |
孔径 Hole Size |
B | S |
|
M3 |
0.5-3.0 | 10.0 | 4.97 | 5.1 | 6.75 | 1.0 |
| M4 | 0.5-3.0 3.1-4.0 |
10.0 12.0 |
5.97 | 6.1 | 8.75 | 1.0 |
| M5 | 0.5-3.0 3.1-6.0 |
12.0 15.0 |
6.97 | 7.1 | 9.75 | 1.0 |
| M6 | 0.5-3.0 3.1-6.0 |
14.5 17.5 |
8.97 | 9.1 | 12.75 | 1.5 |
| M8 | 0.5-3.0 3.1-5.5 |
16.0 19.0 |
10.97 | 11.1 | 15.75 | 1.5 |
| M10 | 1.0-3.5 3.5-6.0 |
17.0 22.0 |
12.97 | 13.1 | 18.75 | 2.0 |
|
M12 |
1.0-4.0 | 23.0 | 15.97 | 16.1 | 22.75 | 2.0 |
