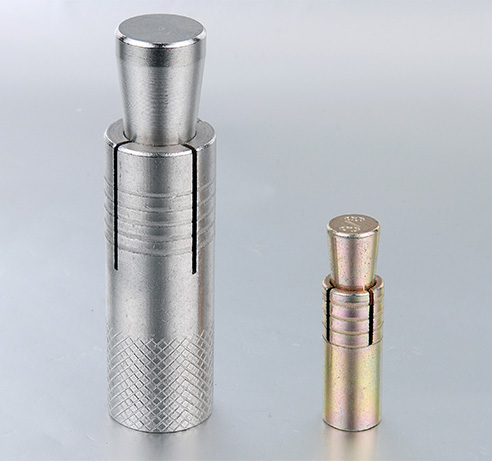

产品与方案- 膨胀螺丝
| 产品编号 | 产品规格 (A) |
外径 (B) |
产品长度 (C) |
螺纹长度 (D) |
螺栓螺纹 配合长度 |
钻头尺寸 | 最大承载力 (kgf) |
| CAM-06 (CAW-20) |
M6 (W1/4) |
11 (10.05) | 30 | 9 | 8 | 11.5 | 980 |
| CAM-08 (CAW-25) |
M8 (W5/16) |
12.0 | 35 | 12 | 10 | 12.5 | 1500 |
| CAM-10 (CAW-30) |
M10 (W3/8) |
14.0 | 40 | 14 | 12 | 14.5 | 2000 |
| CAM-12 (CAW-40) |
M12 (W1/2) |
17.5 | 52 | 20 | 16 | 18.0 | 3200 |
| CAM-16 (CAW-50) |
M16 (W5/8) |
21.5 | 63 | 24 | 20 | 22.0 | 4300 |
| CAM-20 (CAW-60) |
M20 (W3/4) |
25.5 | 83 | 31 | 25 | 26.0 | 5600 |
| 产品编号 | 产品规格 | 长度 | 钻头尺寸 | 最大承载力(kgf) |
| CWM-10 | 10.0 | 40, 45, 50, 55, 60 | 10.5 | 1650 |
