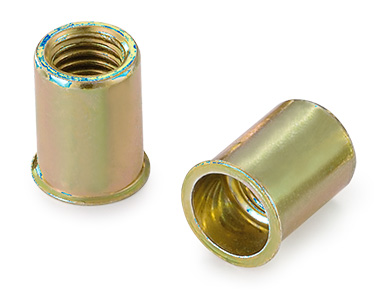

Products-Rivet Nuts
|
Thread |
Grip Range |
L | D |
Hole Size |
B | S |
|
M3 |
0.5-1.5 1.5-2.5 |
9.0 10.0 |
5.0 | 5.1 | 6.0 | 0.5 |
| M4 | 0.5-1.5 1.5-2.5 2.5-3.5 |
10.5 11.5 12.5 |
6.0 | 6.1 | 7.0 | 0.5 |
| M5 | 0.5-1.5 1.5-2.5 2.5-3.5 |
11.0 12.0 13.0 |
7.0 | 7.1 | 8.0 | 0.5 |
| M6 | 1.0-2.5 2.5-4.0 |
14.0 15.5 |
9.0 | 9.1 | 10.0 | 0.5 |
|
M8 |
1.0-2.5 2.5-4.0 |
15.5 17.0 |
11.0 | 11.1 | 12.0 | 0.5 |
|
M10 |
1.0-2.5 2.5-4.0 |
16.5 18.0 |
13.0 | 13.1 | 14.0 | 0.5 |
