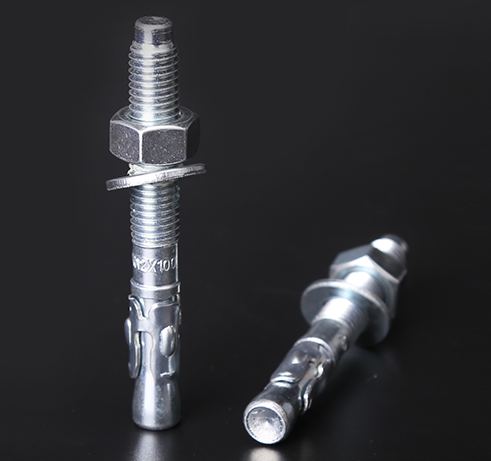

Products-Expansion Anchors
| Product Number | Product Size |
Min Thread Length |
Min Embedment Depth |
Max Thickness of Fixture |
Max Pull Out Load (kgf) |
| APWAM-08055 | M8x55 | 20 | 40 | 5 | 1300 |
| APWAM-08065 | M8x65 | 30 | 40 | 15 | |
| APWAM-08080 | M8x80 | 45 | 40 | 30 | |
| APWAM-08095 | M8x95 | 60 | 40 | 45 | |
| APWAM-08105 | M8x105 | 70 | 40 | 55 | |
| APWAM-08120 | M8x120 | 85 | 40 | 70 | |
| APWAM-08165 | M8x165 | 100 | 40 | 115 | |
| APWAM-10070 | M10x70 | 26 | 50 | 5 | 1700 |
| APWAM-10080 | M10x80 | 41 | 50 | 15 | |
| APWAM-10095 | M10x95 | 56 | 50 | 30 | |
| APWAM-10115 | M10x115 | 76 | 50 | 50 | |
| APWAM-10125 | M10x125 | 81 | 50 | 55 | |
| APWAM-10130 | M10x130 | 91 | 50 | 65 | |
| APWAM-12085 | M12x85 | 40 | 60 | 5 | 2500 |
| APWAM-12100 | M12x100 | 54 | 60 | 20 | |
| APWAM-12120 | M12x120 | 74 | 60 | 40 | |
| APWAM-12135 | M12x135 | 89 | 60 | 55 | |
| APWAM-12150 | M12x150 | 100 | 60 | 70 | |
| APWAM-16105 | M16x105 | 50 | 80 | 5 | 4000 |
| APWAM-16140 | M10x140 | 85 | 80 | 40 | |
| APWAM-16180 | M16x180 | 100 | 80 | 80 |
