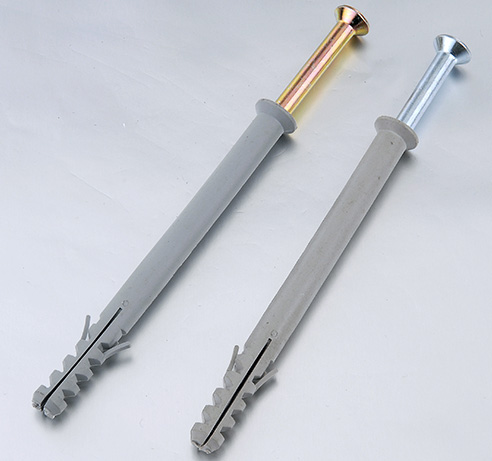

NYLON ANCHOR

Features：

For fixing of concrete, solid bricks, perforated bricks, hollow blocks. The fixings are manufactured from the same high gradpe and quality-monitored polyimide (nylon) which is also used for the frame fixings with general building inspectorate approval. The material is temperature resistant -40~+80°C. Preassembled for quick and easy installation. High holding power.

Application：

Suitable for concrete, hollow brick, solid brick, porous brick.

PDF

Order Code	Nail Screw	Drill	Min Drill-Hole Depth With Push-Through Assennbly	Min Depth	Plug Length	Max Useful Length	Box/Ctn (Pcs)	Pull Out Load (Kgf)
N5X30Z	3.5x38	5	45	25	30	5	100/1000	100
N5X40Z	3.5x48	5	55	25	40	15	100/1000
N5X50Z	3.5x58	5	65	25	50	25	100/1000
N6X40Z	4x48	6	55	30	40	10	100/1000	120
N6X60Z	4x68	6	75	30	60	30	100/1000
N6X80Z	4x88	6	95	30	80	50	100/1000
N8X60Z	5x68	8	75	40	60	20	50/500	170
N8X80Z	5x88	8	95	40	80	40	50/500
N8X100Z	5x108	8	115	40	100	60	50/500
N8X120Z	5x128	8	135	40	120	80	50/500
