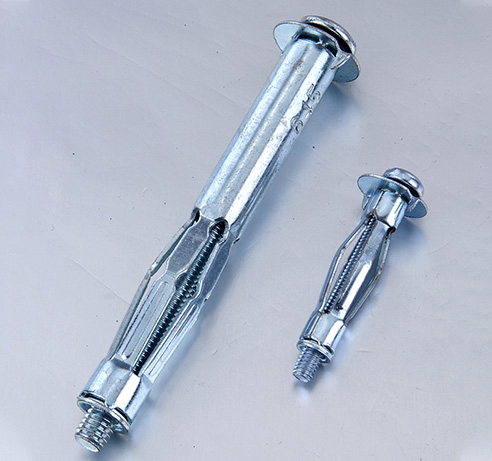

HOLLOW WALL ANCHOR

Features：

Hollow wall anchors securely fasten mirrous, pictures, cabinets, cutrain-drapes-shelf brackets, bathroom fixtures, to hollow walls of plaster over wood lath or metallath, wallboard, gypsumior cinder block, hollow tile, etc. Fixtures can be removed or replaced for redecorating without disturbing the Hollow Wall Anchors.

Material：

Carbon Steel

Application：

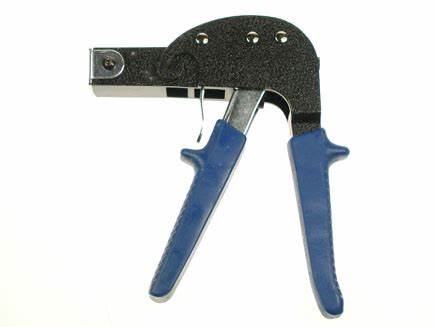

Sanitary equipment installation; Suitable for gypsum board, plank, wall board, hollow brick and other substrates, with hollow tool gun use.

PDF

Order Code	Anchor Size (mm) (Inch)	Anchor Length	Grip Range (mm)	Screw (mm) (Inch)	Screw Length	Pull Out Load (Kgf)
HW-405	4X21 (1/8XS)	20	UP.4	M4(6#-32)	28	30
HW-409	4X32 (1/8S)	32	3.9	M4(6#-32)	41
HW-416	4X38	38	8.15	M4	47
HW-422	4X46 (1/8SL)	46	3-20	M4(6#-32)	54
HW-423	4X46 (1/8L)	46	16-21	M4(6#-32)	54
HW-425	4X54	54	18-28	M4	61
HW-427	4X59 (1/8XL-1)	60	34-38	M4(6#-32)	67
HW-427	4X59 (1/8XL-2)	60	24-34	M4(6#-32)	67	45
HW-510	5X37	37	6-13	M5	45
HW514	5X52 (3/16S)	52	3-16	M5(10#-24)	60
HW-527	5X65 (3/16L)	65	14-32	M5(10#-24)	74
HW-545	5X80 (3/16XL)	80	28-45	M5(10#-24)	89
HW-610	6X37	37	6-13	M6	45	53
HW-614	6X52 (1/4S)	52	3-16	M6(1/4-20)	60
HW-627	6X65 (1/4L)	65	14-32	M6(1/4-20)	74
HW-645	6X80 (1/4XL)	80	28.45	M6(1/4-20)	88
HW-810	8X37	37	6-13	M8	45	65
HW-814	8X52	52	3-16	M8	65
HW-827	8X65	65	14-32	M8	75
HW-845	8X80	80	28-45	M8	90
