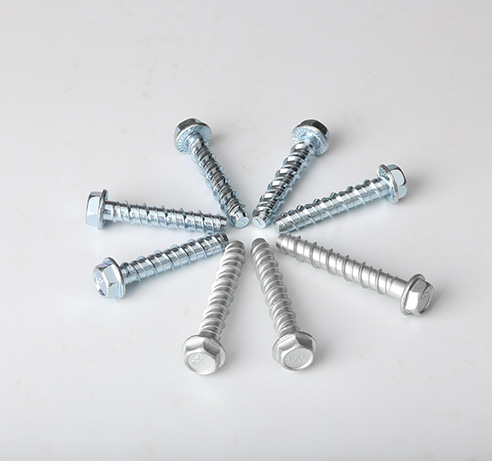

HEX FLANGE HEAD CONCRETE SCREW (INCH)

Features：

Easy pivoting, owing to special thread. Small edge and space distances. One piece non-expansion fixing anchor for close to edge fixing. Save time easily installed: Installs in less than half the time of wedge anchors or adhesive anchors. Simply drill a pilot hole and drive the LDT anchor by hand or impact. Easily removed: No torching or grinding required to remove anchors. Surface treatment: plain, yellow/blue zinc plated, dacrotized plated.

Material：

Carbon Steel

Application：

Large shelf installation, stair, seat, pipe installation and fixing

PDF

Type	Dia (mm)	L (mm)	Drill (mm)	W (mm)	Per Box	Pull Out Load (Kgf)	Thread Length (mm)
14134	1/4	1-3/4	1/4	3/8	100	440	1.4
14234	1/4	2-3/4	1/4	3/8	100	640	2.4
14300	1/4	3	1/4	3/8	100	640	2.6
38300	3/8	3	3/8	9/16	50	1120	2.6
38400	3/8	4	3/8	9/16	50	1120	3.0
38500	3/8	5	3/8	9/16	50	1120	3.0
38600	3/8	6	3/8	9/16	50	1120	3.0
12300	1/2	3	1/2	3/4	25	2000	2.5
12400	1/2	4	1/2	3/4	20	2000	3.5
12500	1/2	5	1/2	3/4	20	2000	4.0
12600	1/2	6	1/2	3/4	20	2000	4.0
12800	1/2	8	1/2	3/4	20	2000	4.0
12120	1/2	12	1/2	3/4	10	2200	4.0
12130	1/2	13	1/2	3/4	10	2200	4.0
12140	1/2	4	1/2	3/4	10	2200	4.0
12150	1/2	15	1/2	3/4	10	2200	4.0
58400	5/8	4	5/8	15/16	10	2200	3.5
58500	5/8	5	5/8	15/16	10	2200	4.5
58600	5/8	6	5/8	15/16	10	2200	5.0
58612	5/8	6-1/2	5/8	15/16	10	2200	5.0
58800	5/8	8	5/8	15/16	10	2700	5.0
34400	3/4	4	3/4	1-1/8	10	2700	3.4
34500	3/4	5	3/4	1-1/8	10	2700	4.4
34600	3/4	6	3/4	1-1/8	10	2700	5.4
34700	3/4	7	3/4	1-1/8	10	2700	6.0
34812	3/4	8-1/2	3/4	1-1/8	10	2700	6.0
34100	3/4	10	3/4	1-1/8	5	2700	6.0
