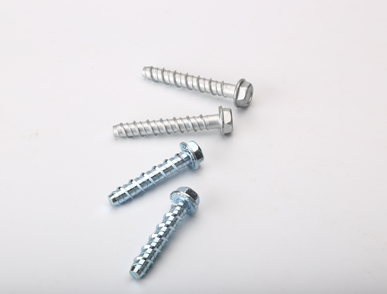

HEX FLANGE HEAD CONCRETE SCREW (METRIC)
Features：

Easy pivoting, owing to special thread. Small edge and space distances. One piece non-expansion fixing anchor for close to edge fixing. Save time, easily installed: Installs in less than half the time of wedge anchors or adhesive anchors. Simply drill a pilot hole and drive the LDT anchor by hand or impact. Easily removed: No torching or grinding required to remove anchors. Surface treatment: plain, yellow/blue zinc plated, dacrotized plated.

Material：

Carbon Steel

Application：

Installation and fixing of large shelves, stairs, seats and pipes.

PDF
Type Dia (mm) L (mm) Drill (mm) W (mm) Per Box

Pull Out Load

(Kgf)

Thread Length

(mm)
06030 6.5 30 6.5 10 100 250 21
06045 6.5 45 6.5 10 100 440 36
06050 6.5 50 6.5 10 100 640 41
06075 6.5 75 6.5 10 100 640 66
06100 6.5 100 6.5 10 100 640 80
06120 6.5 120 6.5 10 100 640 80
08050 8 50 8 13 50 680 42
08060 8 60 8 13 50 760 52
08065 8 65 8 13 50 760 57
08075 8 75 8 13 50 760 67
08100 8 100 8 13 50 840 80
10060 10 60 10 17 50 890 52
10075 10 75 10 17 50 1120 67
10100 10 100 10 17 25 1120 92
10120 10 120 10 17 25 1120 100
10125 10 125 10 17 25 1120 100
10140 10 140 10 17 20 1120 100
10150 10 150 10 17 20 1120 100
10160 10 160 10 17 20 1120 100
10200 10 200 10 17 15 1120 100
10240 10 240 10 17 15 1120 100
10280 10 280 10 17 15 1410 100
12075 12 75 12 19 20 1950 67
12100 12 100 12 19 20 1950 92
12130 12 130 12 19 20 1950 120
12150 12 150 12 19 20 1950 120
12170 12 170 12 19 20 2200 120
12190 12 190 12 19 10 2200 120
12210 12 210 12 19 10 2200 120
12230 12 230 12 19 10 2200 120
12250 12 250 12 19 10 2200 120
12290 12 290 12 19 10 2200 120
12310 12 310 12 19 10 2200 120
14080 14 80 14 22 10 1530 72
14115 14 115 14 22 10 2120 107
14135 14 135 14 22 10 2120 120
14160 14 160 14 22 10 2120 120
16090 16 90 16 24 10 1950 82
16100 16 100 16 24 10 1950 82
16130 16 130 16 24 10 2700 122
16150 16 150 16 24 10 2700 142
16180 16 180 16 24 10 2700 150
16200 16 200 16 24 10 2700 150
16240 16 240 16 24 5 2700 150
16280 16 280 16 24 5 2700 150
16320 16 320 16 24 5 2700 150
