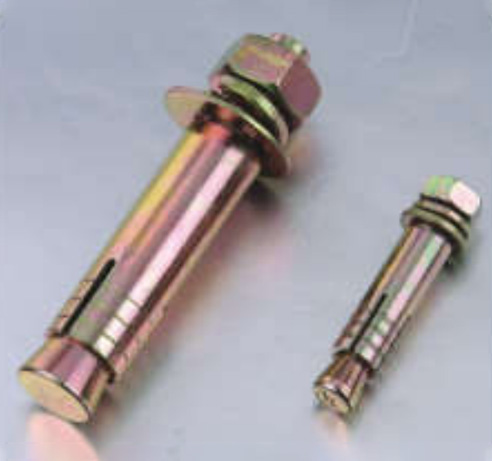

SLEEVE ANCHOR

Features：

Preassembled for quick and easy installation, can be used in thin sections of concrete of solid masonry. Head styles for every application. The test values listed were obtained using C20-C30 concrete (no aggregate). A safe working load should not exceed 25% of stated values.

Material：

Carbon Steel

Application：

Pipeline, balustrade, corridor, stair fixing, window frame, air conditioning installation.

PDF

Order Code	Thread Size	Anchor Size	Sleeve Length	Weight Kgs per 1000pcs	Pull Out Load (Kgf)
SA01	W3/16 M5	3/16x1-5/8“L (M5x40L)	Φ6.5x30.5L	9.50	400
SA02	W1/4 M6	1/4x2”L (M6x50L)	Φ8.0x33L	18.26	600
SA03	W5/16 M8	5/16x2-1/2"L (M8x65L)	Φ10.0x40L	35.93	1000
SA04	W5/16 M8	5/16x3"L (M8x75L)	Φ10.0x55L	39.93	1000
SA05	W3/8 M10	3/8x2-1/2"L (M10x65L)	Φ12.7x38L	52.31	1500
SA06	W3/8 M10	3/8x3"L (M10x75L)	Φ12.7x51L	55.50	1500
SA07	W1/2 M12	1/2x3"L (M12x75L)	Φ16.0x45L	104.00	2300
SA08	W1/2 M12	1/2x3-1/2"L (M12x90L)	Φ16.0x55L	116.00	2300
SA09	W1/2 M12	1/2x4"L (M12x100L)	Φ16.0x65L	130.00	2300
SA10	W5/8 M16	5/8x4"L (M16x100L)	Φ19.0x55L	210.00	3000
SA11	W3/4 M20	3/4x5-1/2"L (M20x140L)	Φ23.0x85L	436.00	4500
